Pump

Drain Pump

Product Detail

Simple and Quick tubing change.

Accept multiple tubing sizes for maximum flexibility.

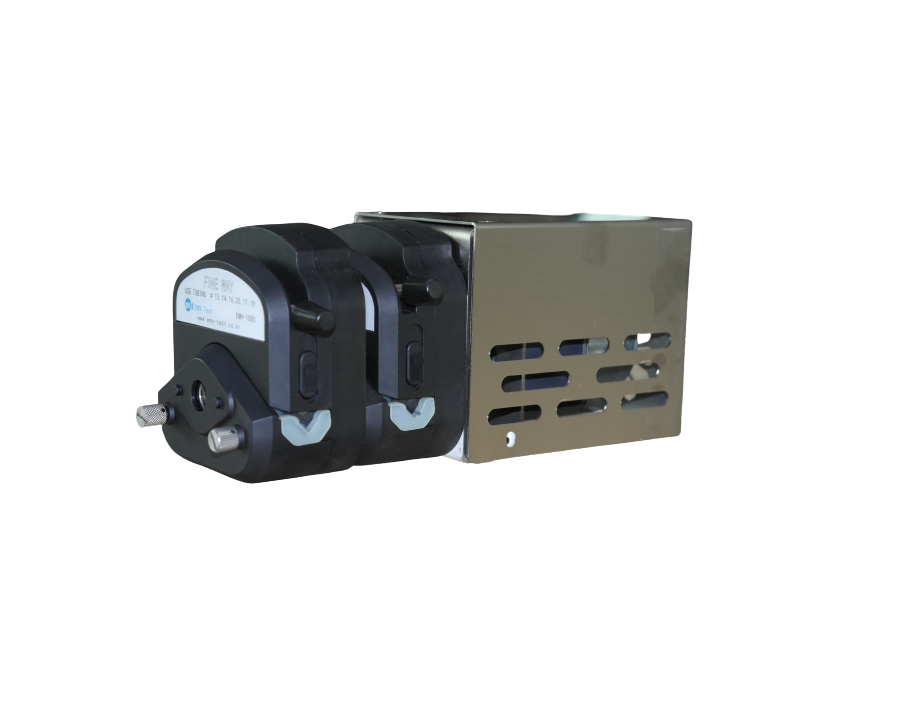

Dual - channel hardware allows two pump heads to operate on a single motor.

Fast tubing changes minimize downtime.

Specification and Order No.* Please select the options to get the combination value you want.

Try moving from side to side.

Swipe left and right

Model	A	Specification	B	Specification			REMARK
Model	A	Motor R.P.M	B	Power	Tube	Flow Rating	REMARK
SAHT-DP-9-220 SAHT-DPD-9-220	9	9 R.P.M	220	210~230 VAC, 60 Hz	T16	7 mL/MIN	* Option - Pump Header (SAHT-DP-H07150) - Motor (SAHT-DP-F60D23) - Pump Tube (SAHT-DP-T16/25)
SAHT-DP-9-220 SAHT-DPD-9-220	9	9 R.P.M	220	210~230 VAC, 60 Hz	T25	14 mL/MIN
caption Special specifications are also made to order.
