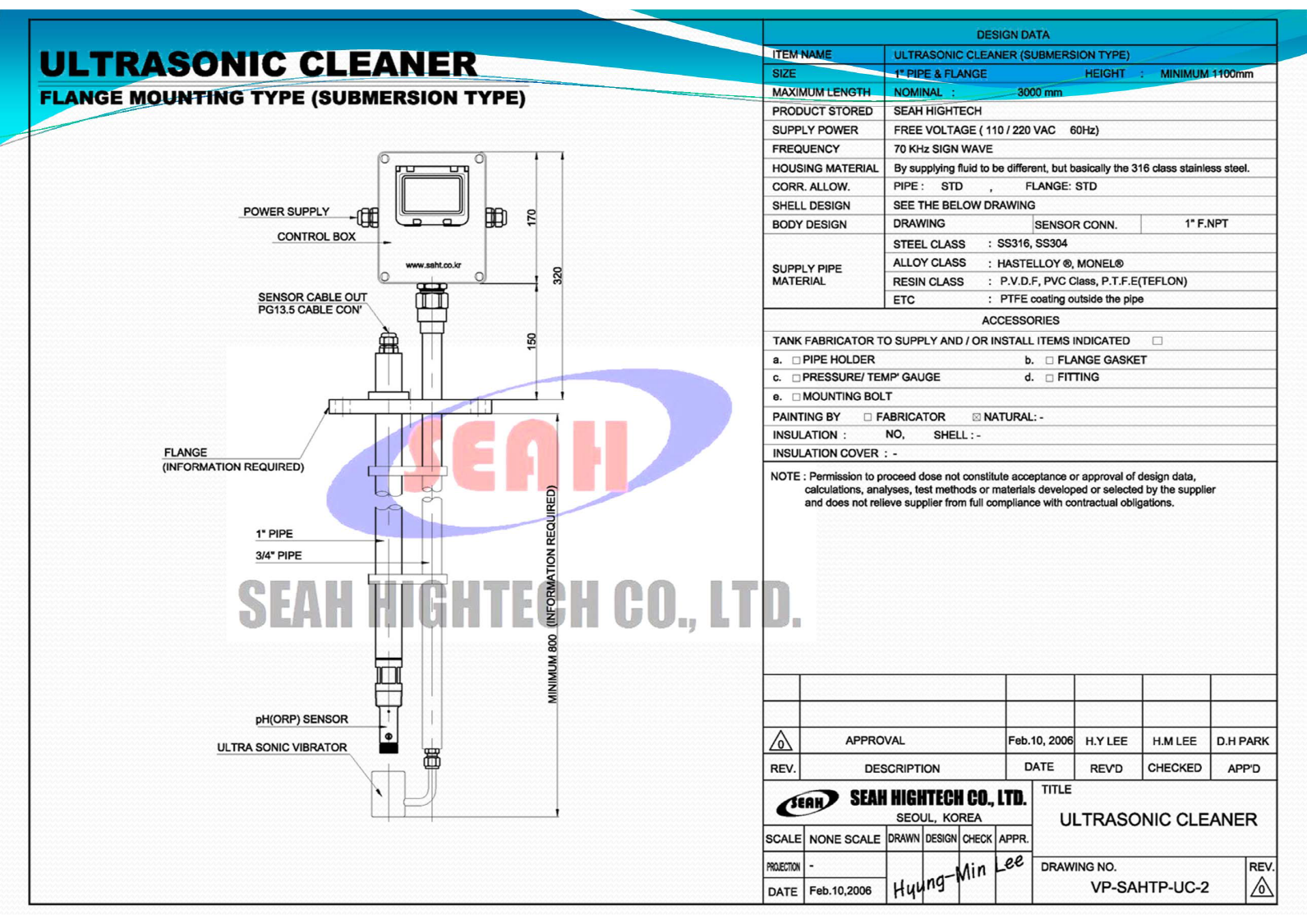

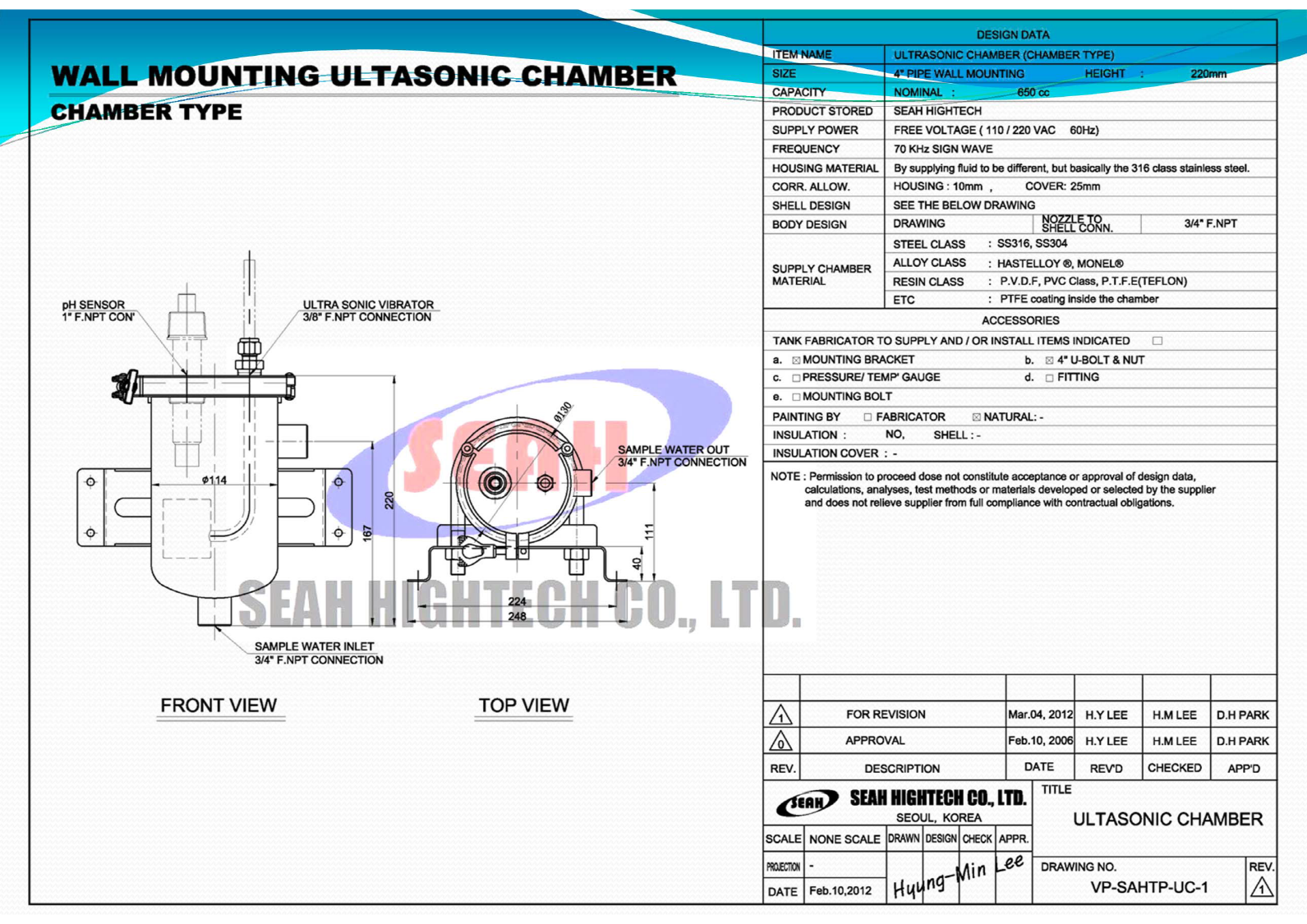

The sensor cleaner Ultrasonic Oscillator type of pH (ORP) sensor cleaner. Immersion -type and flow-type detector and can be used in combination with, installed on the end of the sensor's detection area ultrasound on the electrode continuously as applied by using the principle of Cacitation continuous cleaning and contamination, so microscopic contaminants in the high frequency oscillation represents an excellent cleaning effect.
Easy-to-install, several processes can be installed by a variety of ways, having been manufactured as a solid structure, easy operating and management.
Applications.
Chemical Plant Process Line's sensor cleaning.
Food manufacturing process's sensor cleaning.
Sensor Cleaning wastewater treatment plant of the pH neutralization facility.
Integer processing and sewage treatment's sensor cleaning.
Plated sensor cleaning equipment.
Specification
Model : SAHT-S,SAHT-C
Out put power : Max 30w
Frequency : 70KHZ sign wave
Input power : AC 110V/220V 50/60HZ +-5%

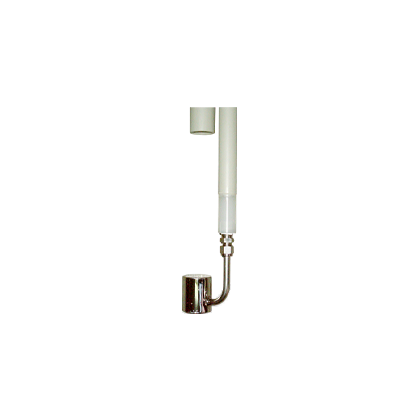

Transducer : Diameter 35mm of B.L.T piezoelectric devices.
Transducer : Diameter 40mm of SS304 1.5t
Generator : Diameter 80mm. Aluminum CASE. Chapter 2 P.C.B Board
Specification and Order No.* Please select the options to get the combination value you want.
