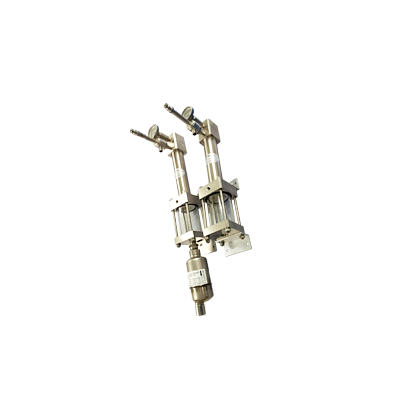

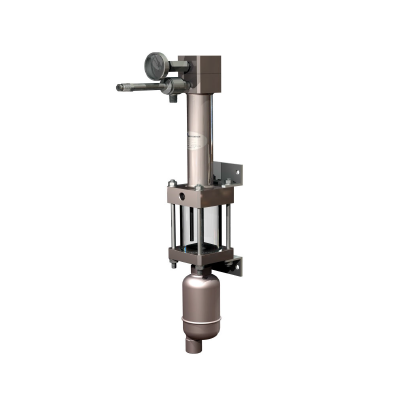

Moisture Removal Unit

Product Detail

Compact high efficiency heat exchangers for cooling high temperature, high pressure liquid or gas samples
316SS coil is standard with rating to 1000℉ at 5000psig(540℃at 345 barg)
Exotic materials such as Inconel, titanium and Hastelloy-C on the tube side and Monel cupronickel and SS on the shell side are available

Specification and Order No.* Please select the options to get the combination value you want.


Try moving from side to side.

Swipe left and right
Model A Specification B Specification REMARK
Cooling Volume Body Material



H : Hastelloy-C

M : Monel

S : 316SS

T : Teflon

* Option
- Auto Drain
- Muffler
- Vent Connection Fitting
- U-Packing(EPDM)
  • Result

    * Request a quotation for the combination value.
