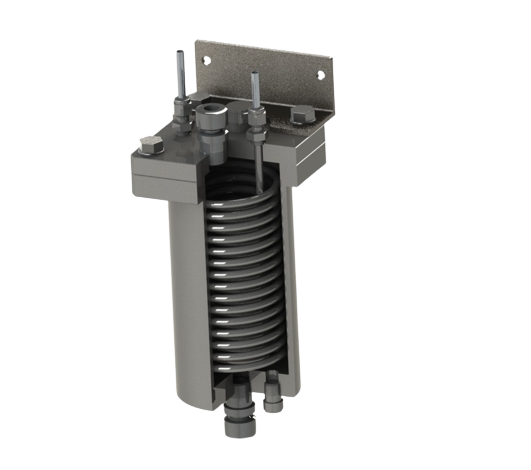

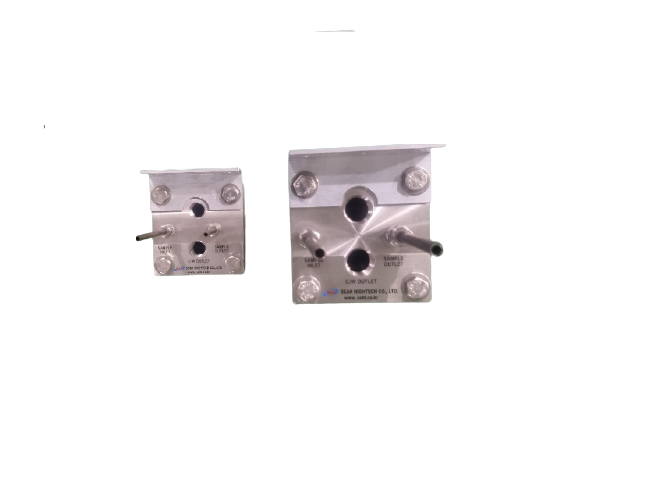

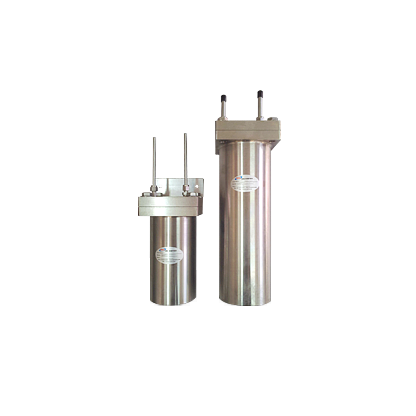

Double Coil Cooler

Product Detail

Compact high efficiency heat exchangers for cooling high temperature, high pressure liquid or gas samples.
316SS coil is standard with rating to 1000℉ at 5000psig. (540℃at 345 barg)
Exotic materials such as Inconel, titanium and Hastelloy-C on the tube side and Monel cupronickel and SS on the shell side are available.
* Cooling device patent registered product.
  (Patent Number : 10-2476463)



Specification and Order No.* Please select the options to get the combination value you want.

swipe

Try moving from side to side.

Swipe left and right
Model A Specification B Specification REMARK
Coil Volume Coil Material

SAHT-DCC-A-B

90cc (1/4"Tube x 6m)

H : Hastelloy-C

M : Monel

S : 316SS

* Option
- Sight Glass
150cc (1/4"Tube x 10m)
270cc (3/8"Tube x 6m)
460cc (3/8"Tube x 10m)
caption Special specifications are also made to order.
  • Result

    * Request a quotation for the combination value.
