Sample Probe

Gas Sample Probe

DETAIL VIEW PDF DOWNLOAD

Product Detail

Electrically heated up to 120℃ or 180℃

Sampling of dust loaded process gas

Small volume, fast response time

Easy mounting and maintenance

Self-regulated electrical heater

Outdoor mounting with protective cover

The control junction box option: Protection Class - IP66
( KTL Certificate No.: 16-039829-01)

Specification and Order No.* Please select the options to get the combination value you want.

Try moving from side to side.

Swipe left and right

Model	A	Specification	B	Specification	REMARK
Model	A	Element Range & Voltage	B	Body Material	REMARK
SAHT-GSP-A-B (Steam Type)	C5	Ceramic 5 Micron(DΦ30x150L)	H : Hastelloy-C M : Monel S : 316SS		* Option - Purge Valve Set - Control J/B Protection : IP66 (KTL: 16-039829-01)
SAHT-GSP-A-B (Steam Type)	C10	Ceramic 10 Micron(DΦ30x150L)
SAHT-GSP-A-B (Electric Type)	C5/110	Ceramic 5 Micron / 2P 110VAC 60Hz
	C10/110	Ceramic 10 Micron / 2P 110VAC 60Hz
	C5/220	Ceramic 5 Micron / 2P 220VAC 60Hz
	C10/220	Ceramic 10 Micron / 2P 220VAC 60Hz

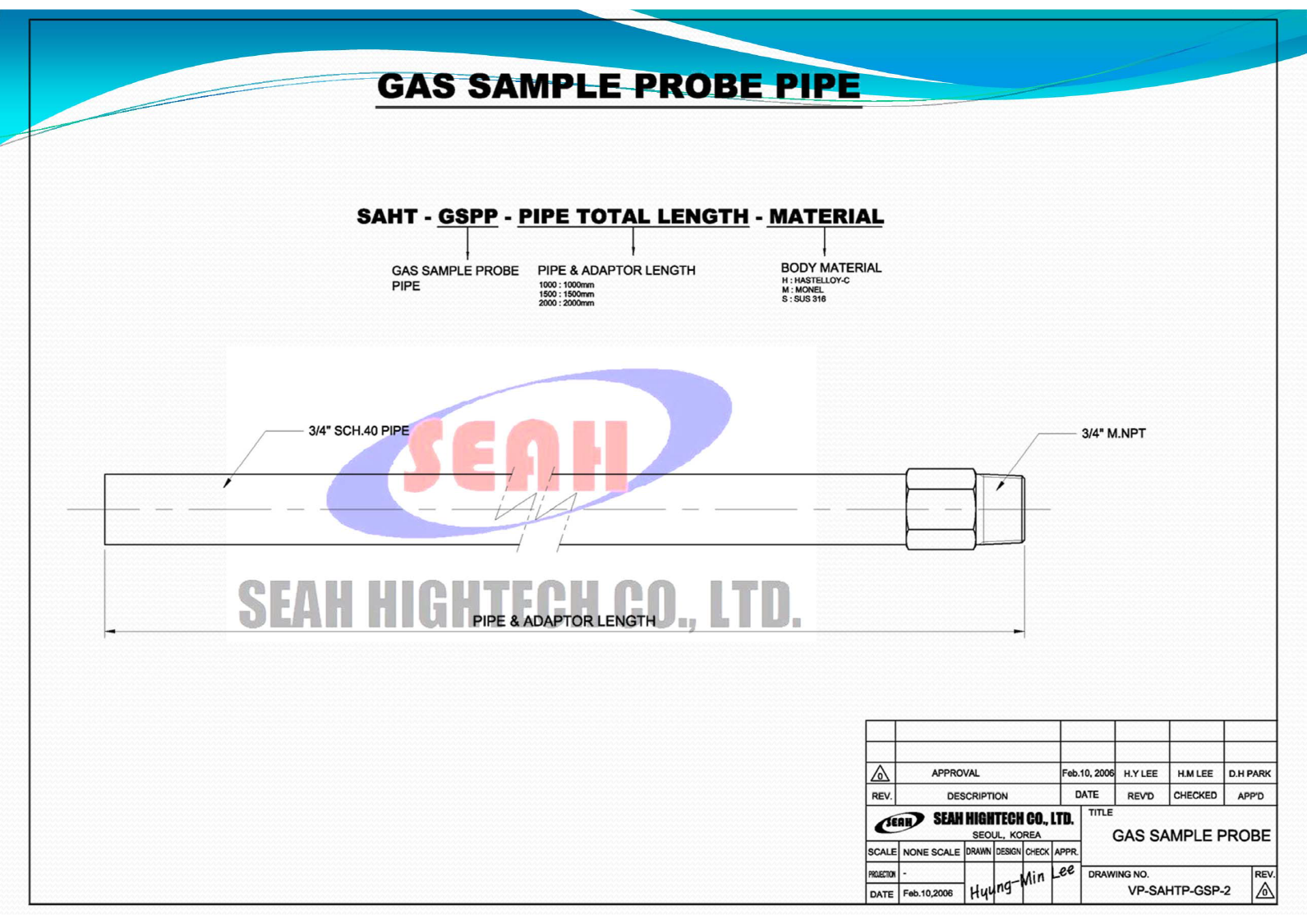

caption Basic In Connecting Pipe 3/4" NPT Basic In/Out Total Connecting Pipe 1/4" NPT(F) Special specifications are also made to order.
