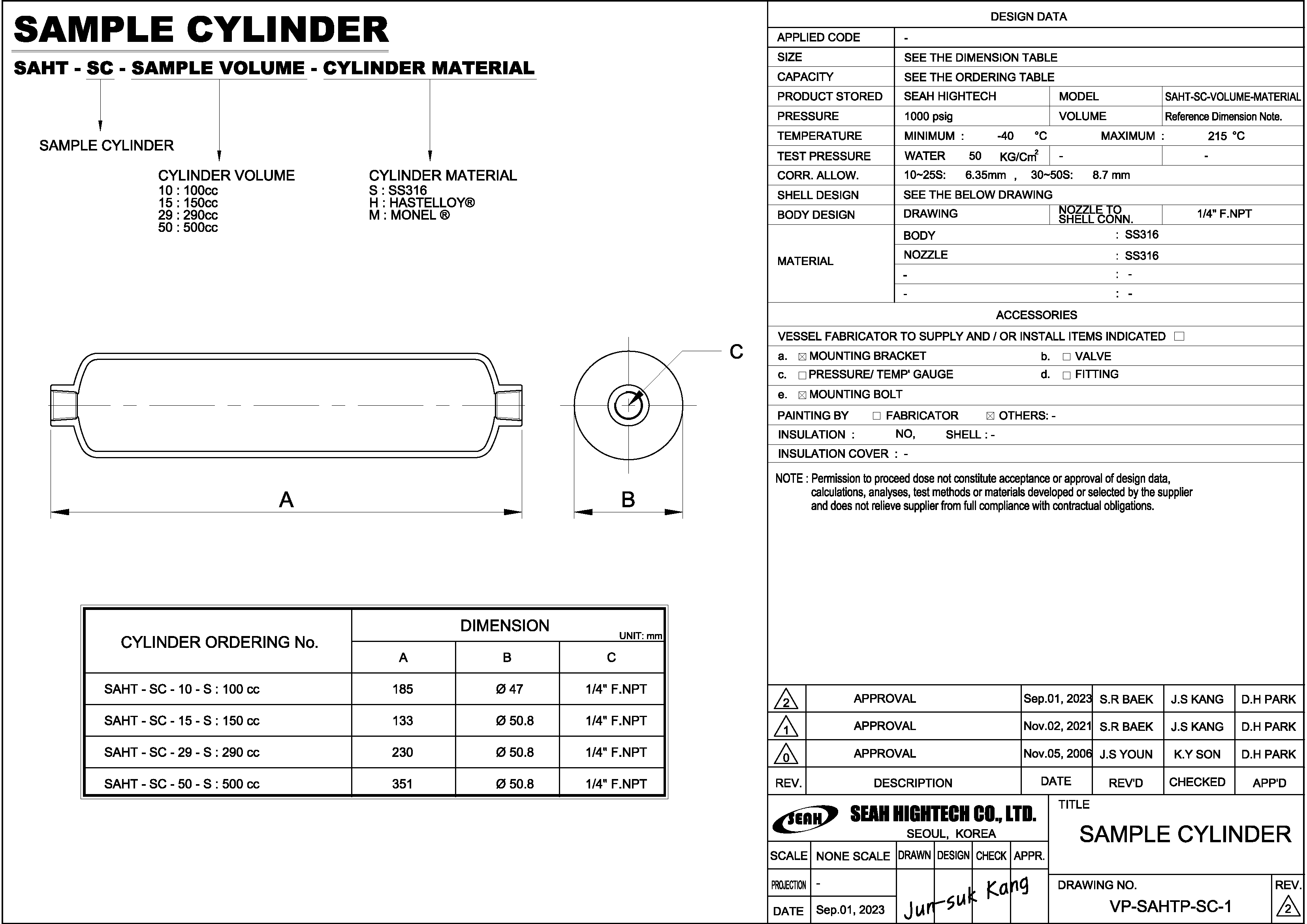

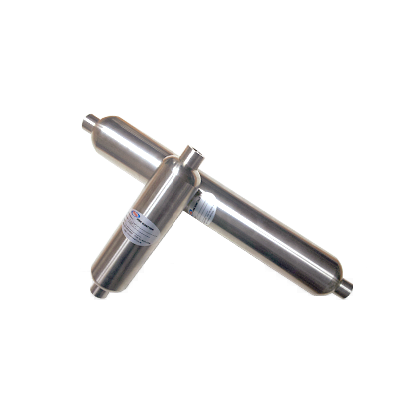

Sample Cylinder

DETAIL VIEW PDF DOWNLOAD

Product Detail

Pressure and temperature rating: 1000psig
-40℃ to 215℃

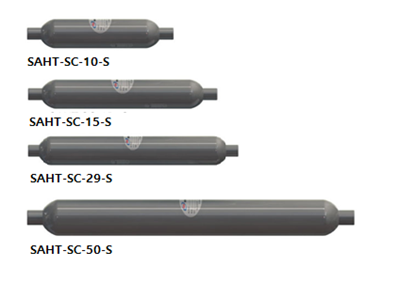

SAHT-SC-10, 15, 29, 50:
100, 150, 290, 500cc with 1/4“ F.NPT threads.

Specification and Order No.* Please select the options to get the combination value you want.

swipe

Try moving from side to side.

Swipe left and right
Model No.
(Ordering No.)		 A Specification B Specification REMARK
Volume Body Material

SAHT-SC-A-B
100cc

H : Hastelloy-C

M : Monel

S : 316SS
* Option
- Needle Valves
150cc
290cc
500cc

  • Result

    * Request a quotation for the combination value.
