Sample Probe

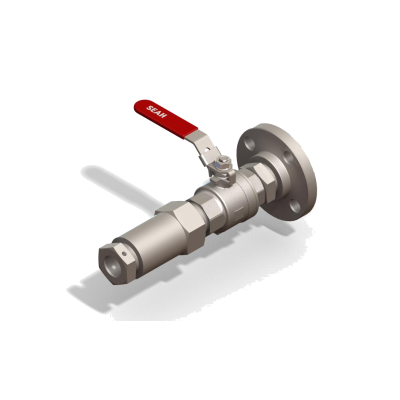

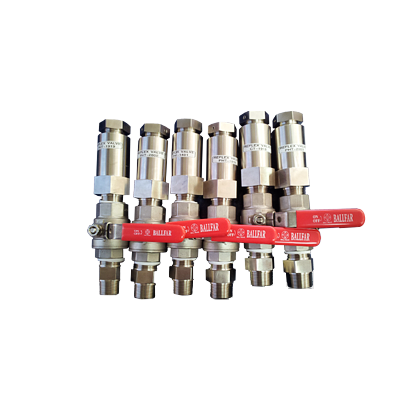

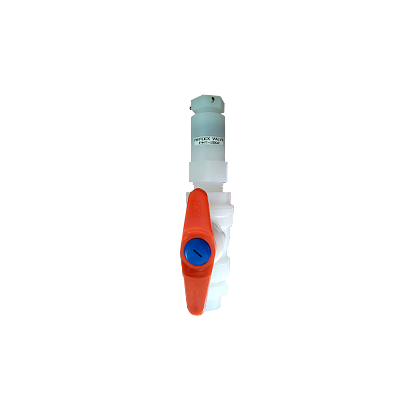

Reflex Valve

Product Detail

Can be used as a chamber for liquid concentration of pH and conductivity measurement.

Sensor’s Connection is made of 1-1/4 "NPT.

Standard Body Material: SS316

Viton Sealing to O-Ring.(Can be changed upon request.)

Specification and Order No.* Please select the options to get the combination value you want.

Try moving from side to side.

Swipe left and right

① 특수한 사양도 주문 생산합니다.

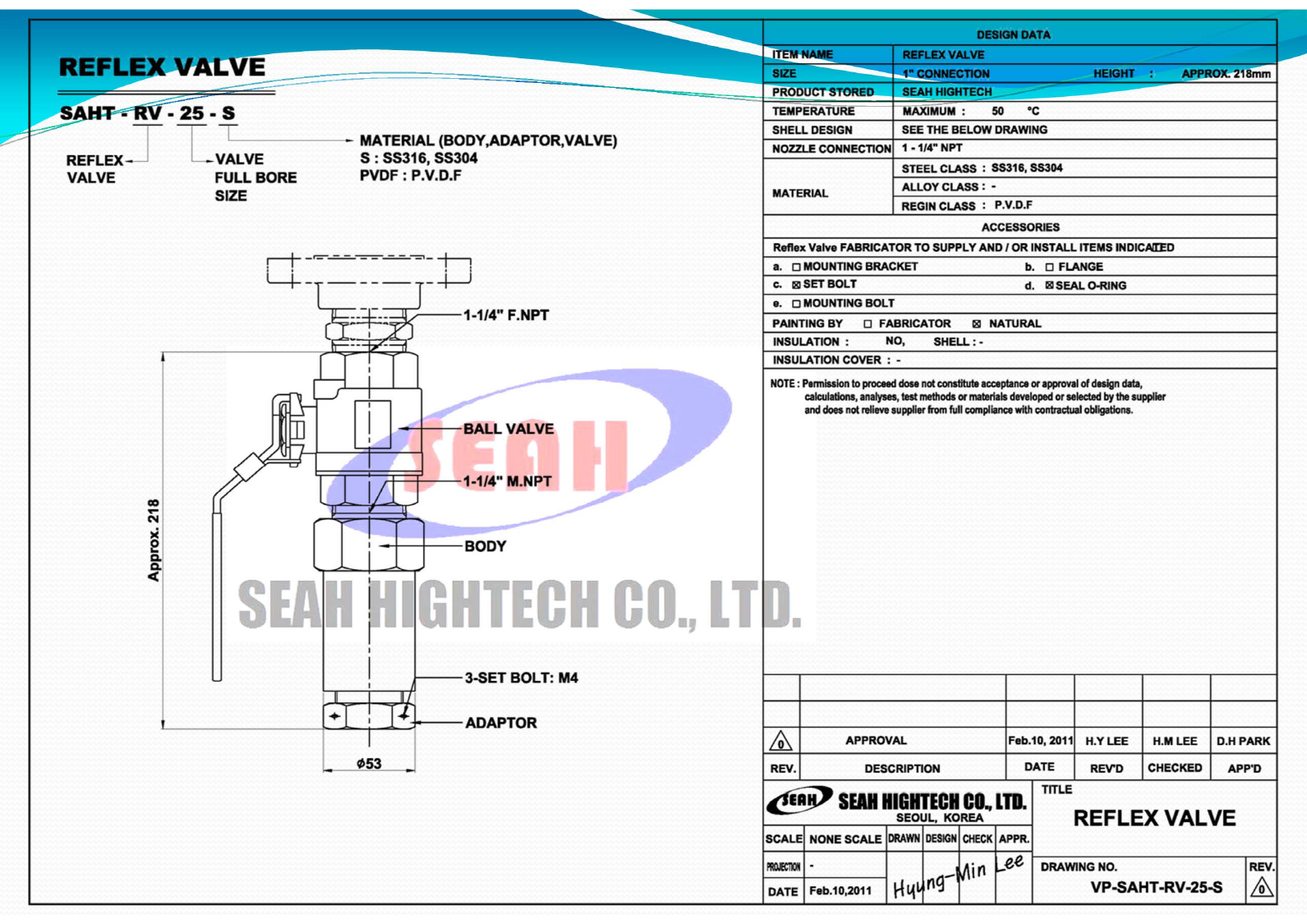

Model	A	Specification	B	Specification	REMARK
Model	A	Valve Full Bore Size	B	Body Material	REMARK
SAHT-RV-A-B	25	1” Pipe Size (Ø34)	P : PVDF S : 316SS		* Option - Flange
caption Special specifications are also made to order.
